PV Solar Panel Junction Box compact structure 20A 4mm2 12AWG

Name: PV Solar Panel Junction Box compact structure 20A 4mm2 12AWG
Brand: Bokang
Price: 1 USD

PV Solar Panel Junction Box compact structure 20A 4mm2 12AWG Manufactures

Brand Name : Bokang

Model Number : Customizable

Certification : IATF16949; TUV; UL

Place of Origin : China

MOQ : 100 pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : Meet customer demands

Delivery Time : As required

Packaging Details : Carton size of 600*400*200mm; Pallet size of 1200*1000*1150mm

Type : PV Module

Rated Voltage : 1500 VDC

Rated Current : 20A

Insulation Material : Quality PPO/PA

Waterproof Structure : Potting Sealant

Contact Material : Copper With Tin-plated

Contact Now

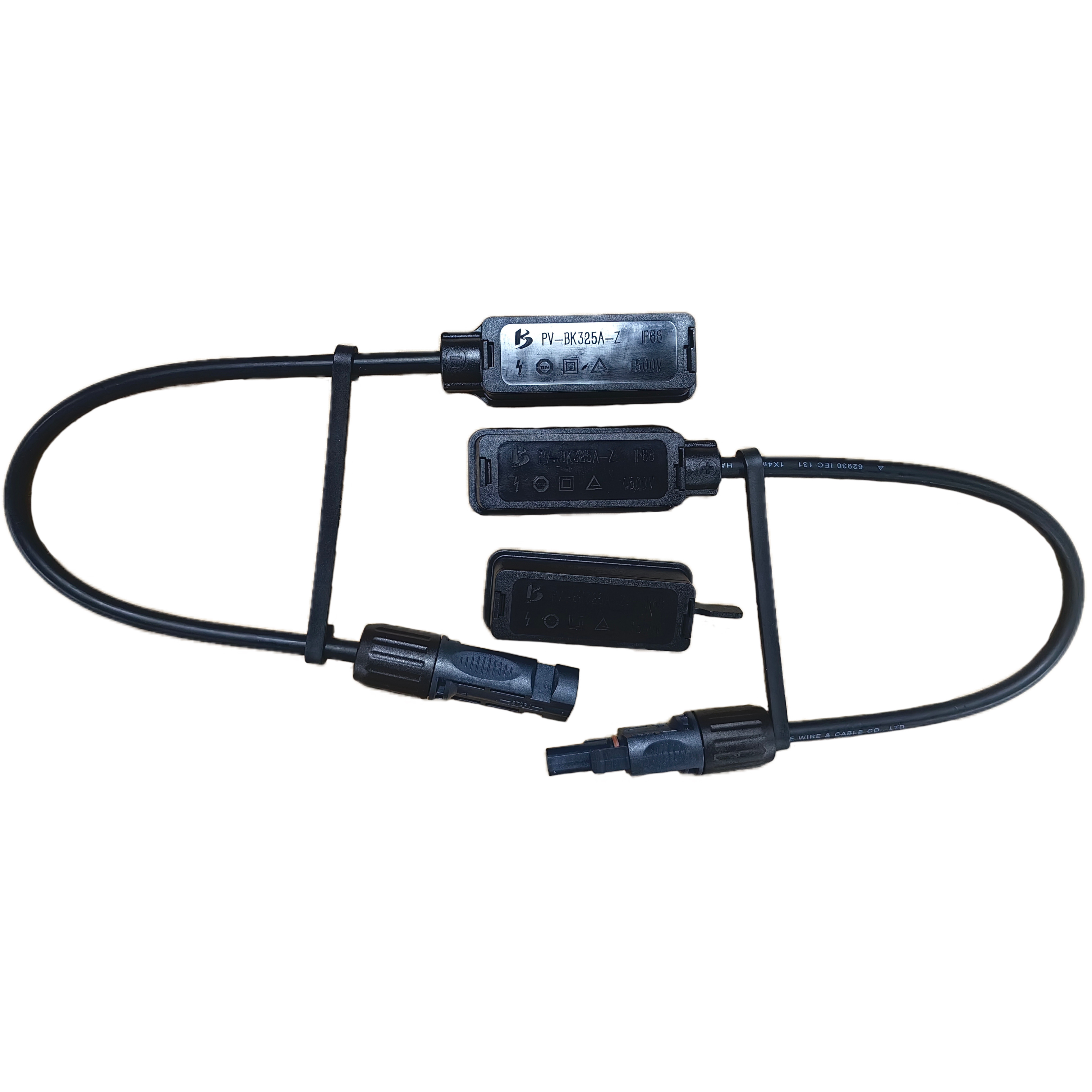

PV Solar Panel Junction Box Photovoltaic Junction Box 20A 4mm2 12AWG

Description:

Our junction box adopts separate design to make the box structure more compact, which saves a lot of cables in the production and installation. The potting sealant ensures excellent waterproof and dustproof performance. By using PPE insulated enclosure and copper with tin-plated conductor, the junction box is corrosion resistant and good for electricity conductivity. Different types of connectors are available to meet your specific needs. Our junction box is TUV and UL certified, superior quality assurance enables you safe to use without concerns.

Quick Detail:

1500VDC Rated Voltage

20A Rated Current

48A Reverse Current

Copper with tin-plated contact material

Safety Class II

Technical Parameter:

Certification	TUV
Rated Voltage	1500 VDC
Rated Current	20A
Reverse Current	48A
Relative Temperature Index	100℃
Class Grade	Class II
Wire Size Range	4mm²;12AWG
Class of Pollution	1 (after potting, inside of box)
Contact Material	Copper With Tin-plated

PV Solar Panel Junction Box compact structure 20A 4mm2 12AWG

Product Tags:

PV Solar Panel Junction Box

Solar Panel Junction Box Compact
