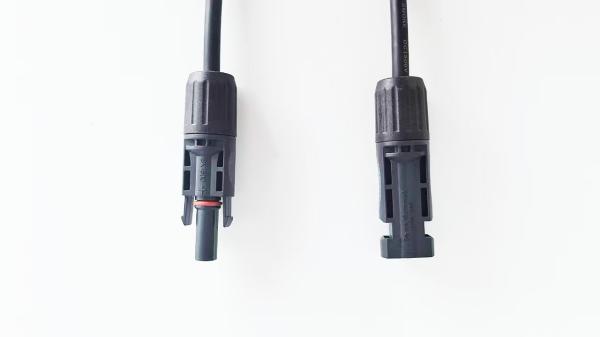

UL Certified Class II PPO/PA Photovoltaic Connector for 6mm² Wire
Product Description:
The Photovoltaic Connector is made of high-quality copper with a tin-plated finish for maximum conductivity and durability. This connector is suitable for use with wire sizes of 2.5mm², 4mm², and 6mm², making it a versatile option for a variety of applications.
The Photovoltaic Connector has a rated voltage of 1500 VDC, making it suitable for use in high-voltage applications. With a rated current of 39A (TUV) and 35A (UL), this connector is able to handle high current loads with ease, making it a reliable choice for energy storage applications.

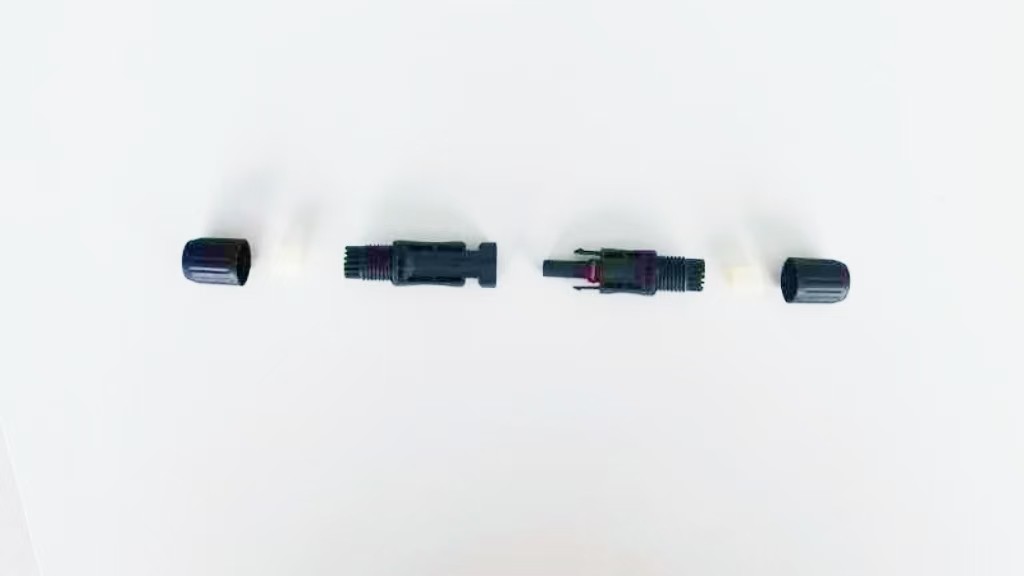

The Photovoltaic Connector has an IP68 rating, which means it is dust-tight and waterproof, making it ideal for use in harsh outdoor environments. This connector is designed to be easy to install, with a simple and reliable locking mechanism that ensures a secure and stable connection.
Overall, the Photovoltaic Connector is a high-quality and reliable PV module accessory that offers excellent performance and durability in a range of applications. Whether you are looking to connect solar panels for a residential or commercial installation, this connector is a great choice that will provide years of reliable service.
Features:
- Flame Rating: V-0; 5VA
- Temperature Range: -40℃ To +85℃; -40℃~+90℃
- Rated Current: 39A (TUV); 35A (UL)
- Contact Material: Copper; Tin-plated
- Certifications: TUV, UL
- Material: PPO/PA
Technical Parameters:
| Item | Description |
| Contact Material | Copper; Tin-plated |
| Ip Rating | IP65/IP68 |
| Wire Size | 2.5mm²,4mm²,6mm² |
| Rated Voltage | 1500 VDC |
| Safety Class | ClassⅡ |
| Insulation Material | PPO/PA |
| Flame Rating | V-0; 5VA |
| Certifications | TUV, UL |
| Type | PV Module Accessories |
| Rated Current | 39A (TUV); 35A (UL) |
