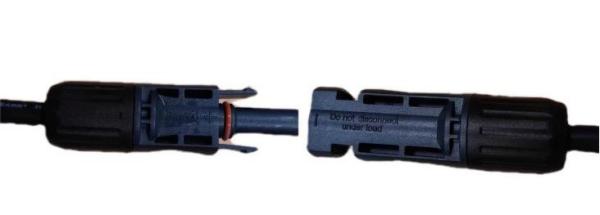

TUV UL Certified Photovoltaic Connector Class II Safety Protection

Brand Name : BOKANG

Model Number : Customizable

Certification : TUV; UL

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : Meet customer demands

Delivery Time : As required

Packaging Details : Carton size of 600*400*200mm; Pallet size of 1200*1000*1150mm

Quality Certifications : TUV/UL Certified

Feature : Waterproof and corrosion-resistant

Ip Rating : IP65/IP68

Safety Class : Class Ⅱ

Contact Material : Copper; Tin-plated

Insulation Material : Durable PPO/PA

Contact Now

TUV UL Certified Photovoltaic Connector Class II Safety Protection

Description:

The Photovoltaic Connector is a vital component in the solar power industry, providing a secure and reliable connection between solar panels and electrical equipment. Designed to withstand harsh environmental conditions, this product offers high performance and durability for long-term use. BOKANG Photovoltaic Connector is a high-quality, customizable product designed for use in photovoltaic (PV) systems. Made from PPO/PA material, it can withstand extreme temperatures and harsh environments, making it the perfect choice for your solar system. With a 1500 VDC rating, it ensures safe and efficient power transmission for your PV panels.

Quick Details:

High-quality copper wire

V-0 flame rating

Optional Wire Size

IP65/IP68 rating

Durable material for cost saving

Technical Parameters:

Item

Description

Safety Class

Class Ⅱ

Flame Rating

V-0

Insulation Material

PPO/PA

Wire Size

2.5mm², 4mm², 6mm²

Temperature Range

-40℃ to +85℃; -40℃ to +90℃

Contact Material

Copper; Tin-plated

Rated Current

35A/39A

Type

PV Accessories

Certifications

TUV, UL

IP Rating

IP65/IP68
